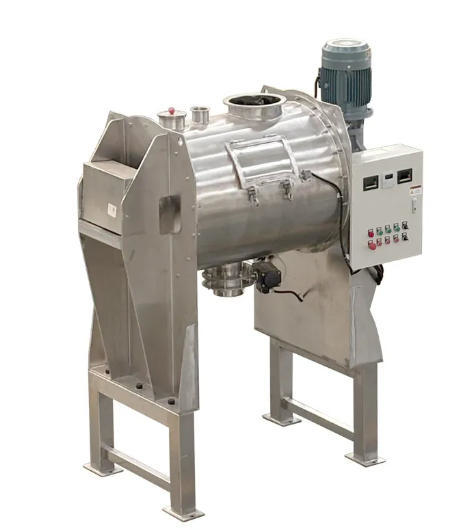

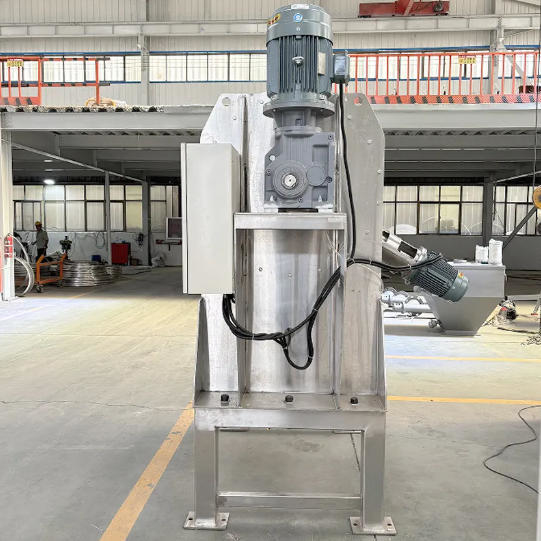

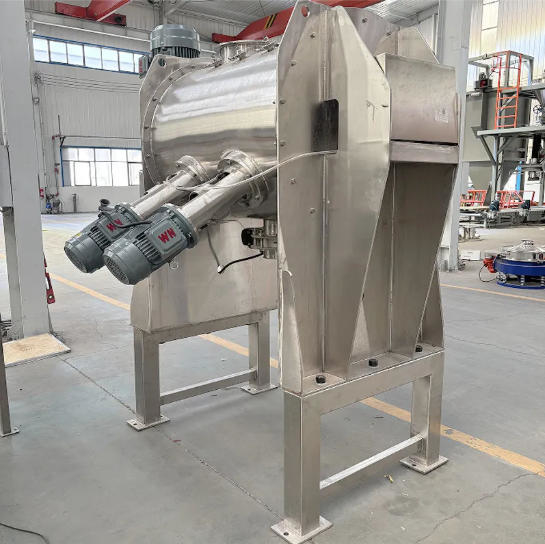

Name: Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: HC404
Price: 40,800.00 USD
Availability: InStock

Evde > Ürünler > Atık İşleme Tesisi >

Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries

Plow mixer for food industry

Chemical plow mixer 1-50kw

Pharmaceutical plow mixer with warranty

Menşe yeri:

Çin

Marka adı:

Hengyang

Sertifika:

ISO9001

Model numarası:

HC404

Bizimle İletişim

Bir İndirim İste

Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries

Ürün Ayrıntıları

İsim:

Pulluk karıştırıcı

Güç:

1-50 kW

Uygulama:

gıda, kimya, ilaç endüstrileri

Malzeme:

SS304, SS310, SS904

Sıcaklık Kontrolü:

Termostat

İşlev:

Karıştırma

Oem:

Kabul etmek

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

5600-76000

Ambalaj bilgileri

olumsuz

Teslim süresi

20-30 gün

Ödeme koşulları

T/T

Yetenek temini

300set/ay

İLGİLİ ÜRÜNLER

Z Type Bucket Elevator 20m3/h Capacity for Food Processing

En İyi Fiyatı Alın

Plow Mixer 1-50kw for Food Chemical Pharmaceutical Industries

En İyi Fiyatı Alın

Gyratory Screening Machine 1-8 Layer 2-600 Mesh for Industrial Use

En İyi Fiyatı Alın

LHL Jet Değirmeni 10-2000kg/sa Paslanmaz Çelik Atık İşleme

En İyi Fiyatı Alın

Bizimle İletişim

86-371-56611369

Şimdi iletişime geçin

Ürün Tanımı

Plow Mixer for Uniform Mixing of Powder Materials

High-efficiency mixing equipment for chemical, food, pharmaceutical, and building materials industries.

Product Specifications

Name	Plow Mixer
Power	1-50kw
Application	Food, Chemical, Pharmaceutical Industries
Material	SS304, SS310, SS904
Temperature Control	Thermostat
Function	Mixing
OEM	Accept

Product Overview

The plough knife mixer is an efficient powder mixing equipment featuring a plough knife type mixer inside its cylinder. During operation, high-speed rotating plough knives create a fluidized material state while axial blades ensure circumferential movement along the cylinder wall. Combined with fly knife groups for shearing and dispersion, it achieves uniform mixing of various powders and granular materials quickly.

Working Principle

The plough mixer operates through multi-dimensional mechanical movements. Plough blades rotate at 60-100 RPM to create fluidized material ejection while axial blades ensure circumferential circulation. Scrapers guide vertical material flow, and flying blades (2000-3000 RPM) shear agglomerates, achieving over 99% mixing precision through turbulent diffusion and convection.

Structural Features

Designed with a U-shaped or trough-shaped stainless steel cylinder featuring polished inner walls to reduce adhesion. Includes top flange feeding, bottom butterfly valve discharging, and features multiple wear-resistant plough blades. The system incorporates adjustable flying blades, high-strength alloy steel main shaft, variable-frequency transmission, and advanced sealing systems with dust collection interfaces for clean production compliance.

Key Advantages

High mixing efficiency: Achieves 99% uniformity in 10-15 minutes, 50% more efficient than traditional equipment
Superior dispersion: Flying knives operate at 2000-3000 RPM for effective aggregate breaking
Material versatility: Handles powders, particles, fibers, and viscous materials with large density differences
Optimized design: U-shaped wear-resistant cylinder with polished interior and <0.1% dust leakage
Modular functionality: Supports integration of heating/cooling jackets and liquid spray systems
Scalable production: Capacity from 50kg to 20 tons with PLC automation support

Technical Specifications

Model	LDH-300	LDH-1000	LDH-2000	LDH-3000	LDH-4000
Working volume (L)	300	1000	150	200	4000
Stirring speed (rpm)	60	60	60	60	60
Stirring motor (kw)	5.5	11	22	30	37
External dimensions (mm)	1200×500×950	2300×980×1500	2900×1030×1750	3300×1150×1950	4000×1250×2200
Weight (kg)	520	1350	1910	2450	3020

Production Line Configurations

Configuration A: Continuous vacuum feeder suction feeding → mixing → silo

Configuration B: Ton bag hoisting feeding → mixing → straight ton bag packaging
