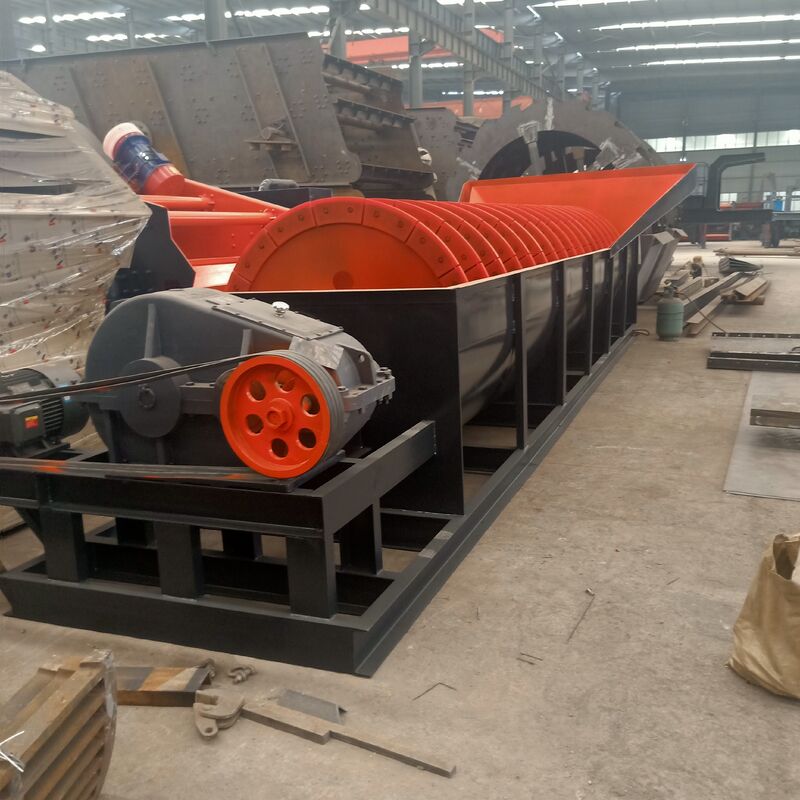

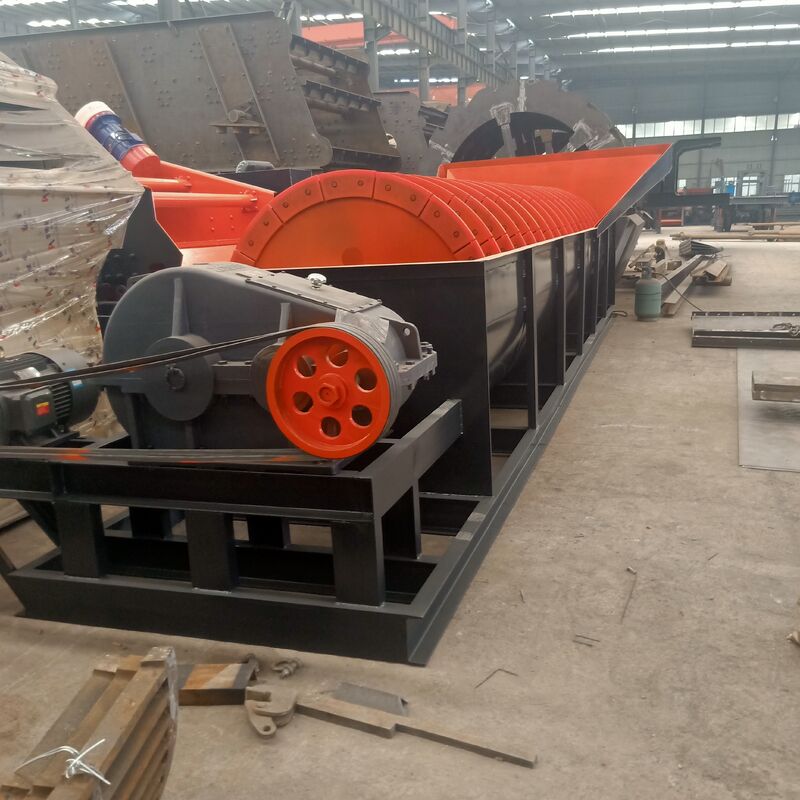

Name: Customize PU Spiral Sand Washing Machinery
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: XL serisi
Price: 23,350.00 USD
Availability: InStock

Evde > Ürünler > Stone & Sand Washing Line >

Customize PU Spiral Sand Washing Machinery

PU Spiral Sand Washing Machinery

Sand Washing Machinery

Spiral Sand Washing Machinery

Menşe yeri:

Çin

Marka adı:

hengyang

Sertifika:

ISO9001

Model numarası:

XL serisi

Bizimle İletişim

Bir İndirim İste

Customize PU Spiral Sand Washing Machinery

Ürün Ayrıntıları

Renk:

Fleksografik / Ofset Baskı

İşlev:

kum ve agrega yıkama

Sarmal:

Bekar

Kapasite:

20-400 ton/saat

OEM:

kabul etmek

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

11000-35700USD/set

Ambalaj bilgileri

Olumsuz

Teslim süresi

15-20 gün

Ödeme koşulları

T/T,L/C

Yetenek temini

300 set/ay

İLGİLİ ÜRÜNLER

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

En İyi Fiyatı Alın

Customize PU Spiral Sand Washing Machinery

En İyi Fiyatı Alın

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

En İyi Fiyatı Alın

Insutrial Use Rotary Screen Capacity 1-250t/h

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Spiral Sand & Aggregate Washing Machinery

Spiral Sand & Aggregate Washing Machinery, also known as screw sand washer, is a sand washing equipment used for cleaning and grading sand and other minerals. It is commonly used for cleaning, dehydrating and grading materials in mineral processing, construction, sand and gravel, and aggregate plants.

This sand washing machine effectively removes dirt, dust and other impurities on the surface of sand and gravel through the rotation of the internal spiral device, while simultaneously destroying the water vapor layer covering the surface of sand particles to facilitate subsequent dehydration.

Working Principle

The Spiral Sand & Aggregate Washing Machinery is mainly composed of weir plate, shell, spiral body, reducer and motor. Sand and gravel materials enter the washing tank through the feed trough. Driven by the impeller, the soil in the sand and gravel is fully mixed with water.

Through the rotation of the spiral device, the sand and gravel particles with heavy specific gravity sink to the bottom of the storage tank, and the excess water is removed during the upward movement. A strong water flow is formed by adding water to take away impurities and foreign objects with light specific gravity. The clean sand and gravel are taken away by the blades and discharged from the overflow port, completing the cleaning and dehydration process.

Structural Characteristics

Tank: U-shaped or semi-countercurrent trough structure, lined with wear-resistant cast stone or rubber sheet
Spiral Options: Double or single spiral options with counter-rotating design to enhance cleaning performance
Power Transmission: Motor driven by cycloidal pinwheel reducer or hardened gearbox
Bearing Protection: Fully enclosed oil-bath bearing housing prevents slurry intrusion

Technical Specifications

Model	Screw Dia. (mm)	Screw Number	Feeding Size (mm)	Capacity (t/h)	Water Consumption (m³/h)	Motor Power (kw)	Overall Dimensions (mm)
XL-750	750	1	<10	20-40	9-60	7.5	70009501330
2XL-750	750	2	<10	50-70	18-120	2*7.5	700017501330
XL-1000	1000	1	<10	50-80	10-70	11	807012001638
2XL-1000	1000	2	<10	100-150	20-140	2*11	807022501638
XL-1200	1200	1	<20	100-120	20-140	18.5	907014301900
2XL-1200	1200	2	<20	150-180	40-280	2*18.5	907027001900
XL-1500	1500	1	<20	150-200	60-300	22	1080017201900
2XL-1500	1500	2	<20	200-300	120-450	2*22	1080033001900
XL-2000	2000	1	<20	250-320	160-460	37	1100022002100
XL-2400	2400	1	<20	320-400	200-620	45	1250027002200
