Name: Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: XL-2XL serisi
Price: 33,850.00 USD
Availability: InStock

Evde > Ürünler > Micron Powder Grinding Machine >

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

High Capacity Double Spiral Sand Washer

Double Spiral Sand Washer

Menşe yeri:

Çin

Marka adı:

hengyang

Sertifika:

ISO9001

Model numarası:

XL-2XL serisi

Bizimle İletişim

Bir İndirim İste

Double Spiral Sand Washer with High Capacity and Strong Cleaning Ability for Sand and Gravel Washing

Ürün Ayrıntıları

Gerilim:

220V/380V,220V,110/220v,380V,Özelleştirilmiş

Garanti:

12 Ay

İşlev:

Kum ve Çakıl Yıkama

tip:

Yıkama

Renk:

Fleksografik / Ofset Baskı

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

12000-55700USD/set

Ambalaj bilgileri

Olumsuz

Teslim süresi

15-20 gün

Ödeme koşulları

T/T

Yetenek temini

300 set/ay

İLGİLİ ÜRÜNLER

Nonmetal Rotary TROMMEL Screen for material separation processes

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

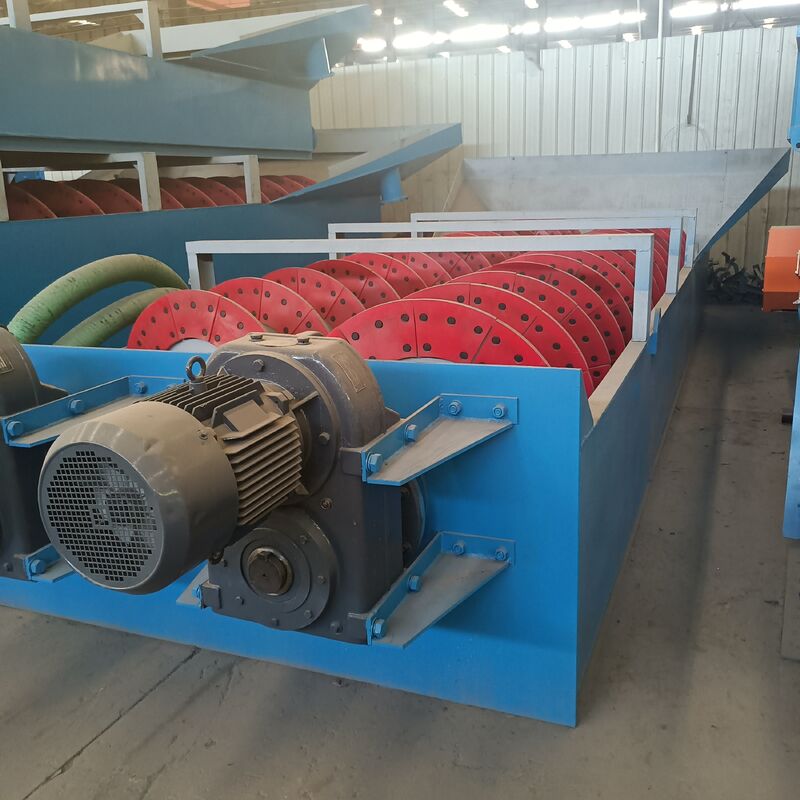

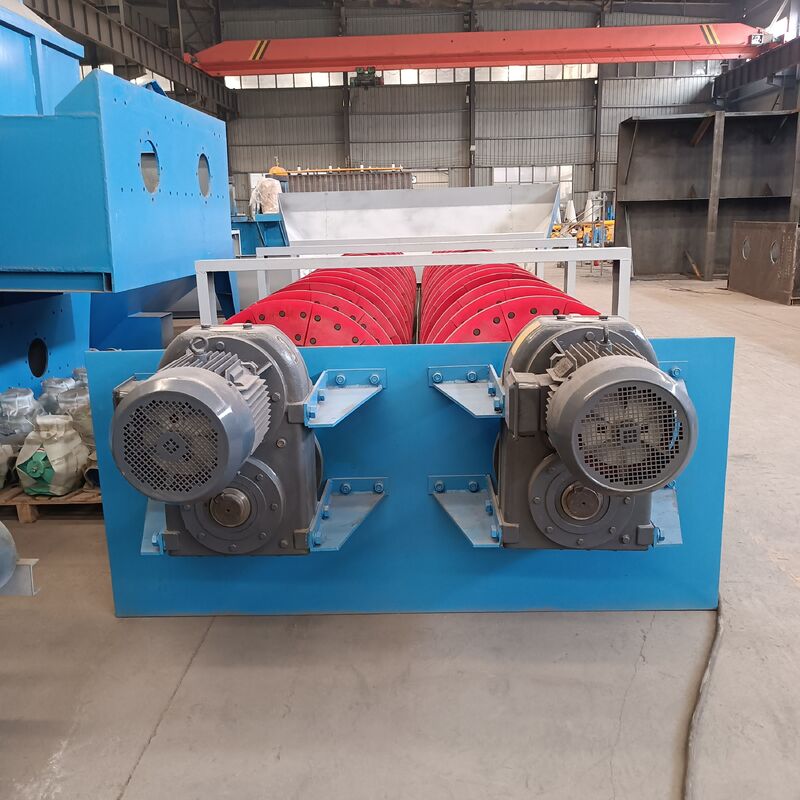

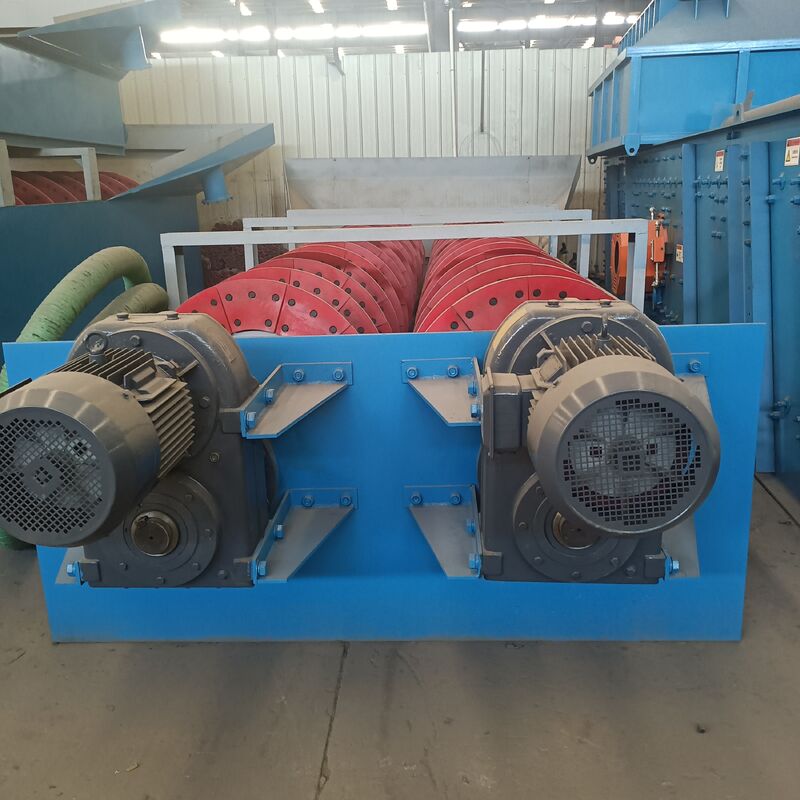

Double Spiral Sand & Gravel Washer

The spiral sand washer efficiently cleans sand and gravel through its spiral mechanism. The equipment stirs the material, mixing soil and water which is then discharged through designated outlets. Under the spiral's action, sand and gravel are gradually screened and discharged from the top outlet, achieving thorough cleaning.

Main Features

Double shaft design provides wider processing width compared to single-spiral models
Higher output capacity than single-spiral washers
Maintains excellent cleaning quality equivalent to single-spiral models
Strong cleaning capability with effective results
Ideal for processing sand and gravel with significant impurity content
Commonly deployed in large-scale sand production operations

Contact: +8615617816797

Technical Parameters

Model	XL508	XL610	XL762	XL915	2XL915	XL1115	2XL1115
Screw Diameter (mm)	508	610	762	915	915	1115	1115
Length of Tub (mm)	6705	7225	7620	7585	7585	9782	9782
Max Feed Size (mm)	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10	≤ 10
Capacity (t/h)	20	40-50	50-75	100	200	175	350
Speed of Screw (r/min)	38	32	26	21	21	17	17
Motor Power (kw)	5.5	7.5	11	11	2×11	15	2×15
Water Consumption (t/h)	6-60	6-63	9-63	10-80	20-160	20-150	40-300
Overall Dimensions (L×W×H mm)	8000×2343×1430	8000×2050×1400	8545×2650×3862	8500×2810×3600	8420×3765×3960	10970×3945×4720	10970×5250×4720
Weight (t)	2.67	3.80	5.23	6.27	11.11	10.18	17.94
