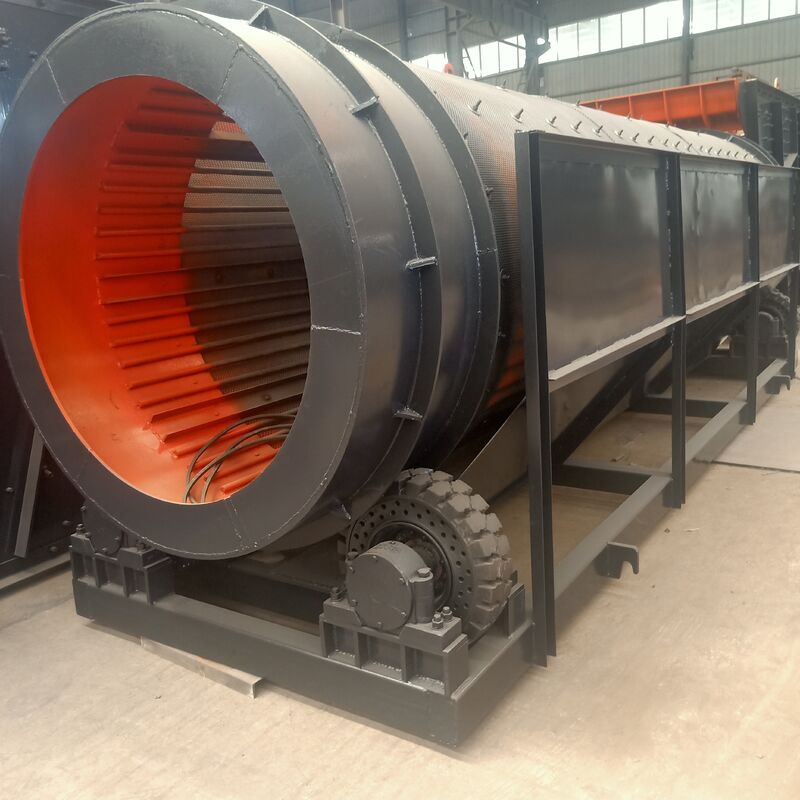

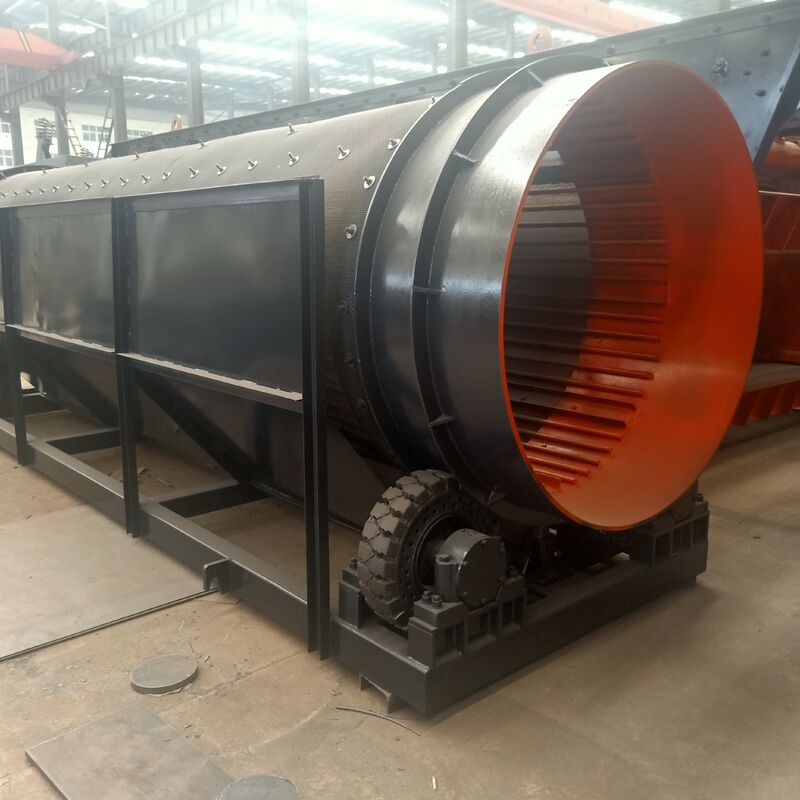

Name: Metal Rotary Drum Screen
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: TTS serisi
Price: 33,850.00 USD
Availability: InStock

Evde > Ürünler > Stone & Sand Washing Line >

Metal Rotary Drum Screen

Rotary Drum Screen

Menşe yeri:

Çin

Marka adı:

hengyang

Sertifika:

ISO9001

Model numarası:

TTS serisi

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Renk:

Fleksografik / Ofset Baskı

Başvuru:

Yıkama ve Ayırma

Malzeme:

çelik

Kapasite:

50-400 ton/saat

OEM:

kabul etmek

Ödeme ve Nakliye Şartları

Min sipariş miktarı

Fiyat

12000-55700USD/set

Ambalaj bilgileri

Olumsuz

Teslim süresi

15-20 gün

Ödeme koşulları

T/T

Yetenek temini

300 set/ay

İLGİLİ ÜRÜNLER

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

En İyi Fiyatı Alın

Customize PU Spiral Sand Washing Machinery

En İyi Fiyatı Alın

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

En İyi Fiyatı Alın

Insutrial Use Rotary Screen Capacity 1-250t/h

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Metal Rotary Drum Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

Principle

• Mobile Gold Washing Machines are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.

Metal Rotary Drum Screen 0

Technical Details

Model	Length range (m)	Screen segments	Mesh range (mm)	Power (kw)	Degree of tilt	Max Size (mm)	Drum speed (r/min)	Handling capacity (m3/h)	Reference weight (kg)
YTS600	2~4	1~3	5~35	2.2~3	7°	35	20	10	1.6
YTS800	2~4	1~3	5~40	2.2~5.5	7°	45	18	14	2.4
YTS1000	2~6	1~4	5~45	3~7.5	7°	60	16	16	4.2
YTS1200	2~8	1~4	5~50	4~11	7°	70	15	20	5.8
YTS1500	2~8	1~4	5~55	4~15	7°	80	12	32	7.2
YTS2000	2~9	1~4	5~60	5.5~18.5	7°	90	8	45	11
